Introduction to 3D CAD Software

3D models are an important part of digital production, involved in many different kinds including, but not limited to: 3D printing, animation, gaming, architecture, and industrial design. Being that having the right models are so critical to your success, it makes it important to choose the right 3D modeling software to fit your needs, with as little headaches as possible. The right CAD software program can unleash your creative side and keep you focused on what really matters – the design.

However, it can be difficult to find the right software programs. The reason for this is the myriad features and functions these applications offer designers and engineers. With this in mind, we’ve organized the most comprehensive list of 3D CAD applications in tiers of difficulty, and included the essential information such as price, supported file formats, etc. to help you make the absolute best decision possible.

Having said that, we’ve chosen to exclude some gaming and animation apps from this list to save some time. We plan on covering those categories in the future so stay tuned. The picks below are based on a roundup of expert information from engineering forums, reviews and blogs. The list below was created from what we think are the most useful features for 3D CAD modeling software tools. Some of our picks are best suited for visualization and quick ideation and rendering, while others are useful for freeform surface modeling. We’ve also included a wide range of pricing, from the best CAD software tool to the more inexpensive software for beginners who want options without the hefty price tag. The list below is in absolutely no particular order.

3D CAD Software Comparison Chart

[table id=1 /]

Beginners: 3D Modeling Software

The following 3D CAD software programs are placed in no particular order. This list will be constantly updated with new apps and software, so check back frequently.

MeshLab

Meshlab is an open source system for processing and editing unstructured 3D triangular meshes. The software excels in providing editing, cleaning, healing, inspecting, rendering, and converting tools for all sorts of meshes.

Meshlab is a rich, complete mesh fixing and editing software. Professional users like it for it’s mesh and point cloud processing functions, and ability to take very large 3D scan file data and manage it.

Download Now

Key Features:

  • Process raw data produced by 3D digitization tools and preparing 3D printing models
  • Large meshes support
  • Big Improvements to rendering speed
  • Get metric info out of models and quality transformation features
  • Upload models directly SketchFab
  • Transformation matrices used more uniformly among filters
  • 3D acquisition: aligning, reconstruction, and color mapping and texturing

Cost: Free

3d cad software

Wings 3D

Although good for new CAD users it is still useful for professionals due to it’s advanced subdivision modeler. Wings 3D comes with an interface that can be customized, along with an Auto UV mapping feature to give your model texture. It has a customizable interface and a built-in Auto UV mapping facility to give your model texture. Wings is Open Source making it great for free use for anyone.

Files Format: OBJ

3D cad software

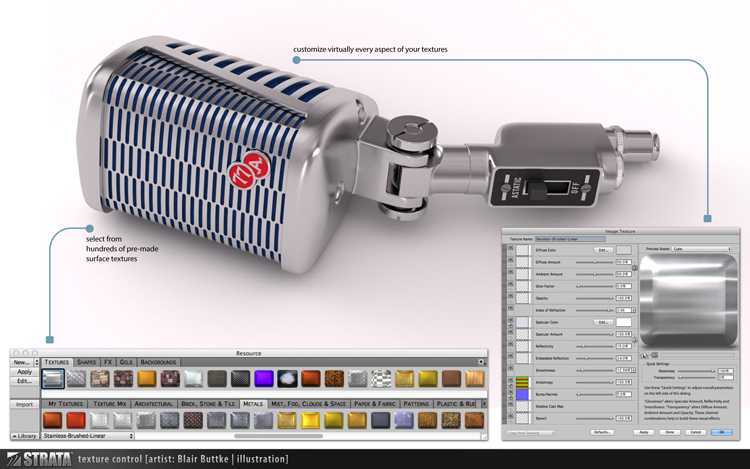

Strata Design SE 3D

Strata Design is one of the best options for new 3D CAD model designers just starting out. The software’s Drawing feature let’s you export your file or draw your own 2D object. The main feature that makes Design SE so easy to use and fun is it’s modeling and rendering capabilities.

File format: Collada (in/out), Illustrator/EPS (in), Photoshop PSD (in/out), STL (out), 3DS (in), DXF (in/out), OBJ (in/out), VRML 1 & 2 (in/out)

Download Now

3D cad software

Design CAD 3D Max

Ideal for beginners as well as experts, DesignCAD 3D Max can do it all when it comes to a 3D CAD modeling software tool. This 3D modeling tool also sports a 2D CAD feature with the power for creating high-quality designs, simple renders, and animations.

Key Features:

  • Interoperability of new files
  • Superior management of image files, blocks, and symbols
  • Complete range of strong 3D modeling primitives like: box, sphere, hemisphere, pyramid, cylinder, cone, and torus
  • Operate using Boolean logic including solid add, solid subtract, and slice to shape 3D parts
  • Includes support for 3D view settings, 3D primitives, 3D (solid) editing operations, and 3D visualization

Cost: Free trial available
Bundle: $199.99
DesignCAD 3D Max 2016: $99.99

3D cad software

K-3D

K-3D is geared toward the artist by focusing on animation and 3D modeling. If you plan on needing more advanced features you can upgrade the plugin to utilize its visualization pipeline architecture. The software comes with a variety of interactive tutorials to give you modeling tips as well.

File Format: Wavefront OBJ, GTS and a raw format are fully supported, other ones are optional and depend on PLIB installation. Experimental plugins include OpenFX, OFF, RIB and X formats.

Download now

LeoCAD

LeoCAD is a solid CAD software program strictly for LEGO modeling and design. Due to this limitation you may not want to use this for every project. The program’s interface is fairly easy to use and features over 6000 different pieces making it fast to create your 3D models.

File Format: .ldr, .dat

3d cad software

Shapr3D

Great for product engineers and designers who work mostly on a tablet, this software is a great solution for use with the iPad Pro. Sharpr3D was the first working 3D CAD program that worked on the iPad Pro for experts and professionals. Having said this, it is still rather easy to learn, but still powerful enough to allow engineers the freedom to draw shapes and transform them with their tablet, Apple Pencil within the app.

Key Features:

  • Easily draw shapes and transform them; then in a matter of seconds use freeform surfacing, sketch on faces, and chamfer edges
  • Software and app designed specifcally for iPad Pro
  • Sketch just like you would on paper but get 3D results instantly
  • Compatible with popular CAD software including: SOLIDWORKS, AutoCAD, Fusion360, Rhino3D, CATIA, and Inventor
  • Precise sketches and models perfectly measured in mm, cm, m, inches, and feet
  • Supports features and transformations like: union, loft, hollow, offset, revolve, section, subtract, sweep, and freeform

Cost: Free (Great for 3D printing)
Pro version: $8.25/month paid annually – Ideal for professional users

3d cad software

Morphi

Morphi is a 3D design app for 3D printing, augmented reality, virtual reality, stop-motion animation, visualization, and more for creating inventions, prototypes, and products. Morphi gives product engineers and their teams the ability to create 3D models from anywhere using touch and 3D shapes, text, hand drawing, images, and streamlined 3D modeling tools.

Key Features:

  • Simple, powerful 3D design tool
  • Use touch to create 3D models from anywhere, any time using a mobile device
  • Design both online and offline
  • For iPad, Mac desktops, and Mac laptops

Cost: Morphi for iPad: Free with in-app purchase options
Morphi for Mac: $9.99

3d cad software

Leopoly

Leopoly is a free online 3D surface design app that is very simple to use. It’s very simple to use, and it’s free. On the site you can customize objects using the available tools. Leopoly makes it straight-forward to include colors, shapes, letters to any of your 3D designs or models. Start your design from scratch or upload an existing file from a different software program. You have the option to export the file or 3D print directly on their 3D CAD platform.

File format: STL, OBJ
Browser-based (no download necessary)

123D Design by Autodesk

Autodesk 123D Design is a simpler 3D CAD and 3D modeling software for hobbyists created by Autodesk. It is similar in scope to SketchUp and based on Autodesk’s Inventor.

AD 123D Design is part of the free Autodesk 123D Apps group it has some power yet remains fairly easy to use for 3D creation and editing, working easily with most 3D printer models available today.
123D Design is a simple enough, intuitive graphical user interface with a viewable toolbox on the top and the view tools underneath. The design area of the app takes the rest of the space. Meshes are designed by placing primitive shapes in the design area. These shape’s properties can be refined with an array of tools, including more advanced techniques like sweep and loft. As well as the more basic drawing and modeling capabilities, it also has assembly and constraint support and STL export. There is also a library of pre-made blocks and objects, which can be valuable timesavers.

The software can also be used like more traditional CAD software for a more technical 3D design approach. Also, you can import SVG files which makes it a very useful 3D modeling software tool with regards to creating mechanical parts from a drawing stored in SVG format.

This powerful tool is without a doubt one of the best 3D modeling software for beginners who want to get a solid foundation in the art.

UPDATE: In spring 2017, Autodesk discontinued the 123D software line of free 3D modeling and scanning tools.

Formats: 123x, step, STL, x3d, VRML
Cost: Free
OS: Windows, Mac and iOS

3d cad software

Creo Parametric 3D

Creo Parametric 3D is a product engineering software tool that improves quality and product time-to-market because it allows designers to quickly construct virtual 3D product prototypes while automating the product development process.

Key Features:

  • Unique blend of parametric and direct modeling with product design apps that are interoperable
  • Freely create and interact with 3D CAD geometry to quickly see the results of your engineering decisions
  • Good for beginners and professionals alike

Cost: Free trial available; Contact for a quote

3d cad software

TurboCAD 2016 Deluxe

TurboCAD 2016 Deluxe is a complete, powerful 2D/3D CAD tool. The software features powerful drawing, modifying, dimensioning, and annotating. The materials, lighting, and photorealistic rendering are favorites of product engineers along with the software’s ability to easily share their work with AutoCAD and SketchUP, as well as print in 3D.

Key Features:

  • Beginners can learn
  • 2D drafting and 3D modeling in one easy tool
  • Customizable UI, time-saving wizards, XREF support, and more
  • Tools geared to mechanical engineers such as: 2D/3D Boolean operations, revolve, extrude, sweeps, and chain polyline
  • Better mirror copy tool for 3D objects
  • Slot tools, improved conceptual selector, new highlighting of 3D objects and parts of 3D objects, and much more

Cost: Electronic download $129.99

3D Slash

3D Slash is a simple, free 3D modeling software that allows the user to create models using a concept of building blocks similar to popularized game Minecraft.

Conventional parts of the program are not a part of the software, such as extrusion, revolution or sweeps, which might be sort of a surprise to 3D modeling professionals. Rather, modeling is focused on the cuboid, or a solid block that may be divided into smaller blocks of equal size. Using somewhat unfamilair tools to the modeling veteran such as the hammer, trowel, chisel, pulpwood, and drill; users create their 3D design working with the cuboid. For example, remove individual cubes with the hammer tool, and add cubes with the trowel.

3D Slash modeling software is also compatible with a wide range of online printing services and model repositories. Alternatively, export your 3D design to STL and print it on your 3D desktop printer.
If you are a beginner and think you may end up becoming a profssional designer; then you will probably be better off going with a tool like TinkerCAD or 123D Design so that you can get acclimated to the fundamentals.

Format: 3dslash, obj, STL
Cost: Free, Premium functionality from 24€/year
OS: Windows, Mac, Linux, Raspberry Pi or Browser

Download Now

3d cad software

Photoshop CC

While not known as a 3d modeling software program, the famous well-known graphics editor has had some 3D features for quite some time. 3D printing is only supported as of version 14.1. Some downsides include the lack of any substantial modeling capabilities. Even with a lack of 3D model focus Photoshop CC does provide some support for 3D printing. It can generate support structures and scale the mesh to fit the selected printer. Also of value are the mesh repair tools that will help generate a watertight STL file.

Photoshop is connected to various online marketplaces and printing services. It might not be the best option, but if you already have this software and 3D files for printing then you will be able to print with this set up.

Format: 3ds, dae, kmz, obj, STL, u3d
Cost: 142 €/year
OS: Windows and Mac

3d cad software

SculptGL

The concept of sculpting within 3D modeling software is an interesting new approach to classic 3D modeling. There are some similar software programs on the market, but they are fairly difficult to learn which we will cover later in this review. In the comfort of your browser you can get a sense of the sculpting workflow with some basic tools.

Different from other sculpting tools you don’t jump right in trying to create a high-definition mesh right away, but rather build up levels as you go. In practice, you will either start out with a primitive that you mold into your 3D design from scratch or load a template (a generic human body, etc.) from 3D modeling software as a basis. The groundwork is always to define the silhouette (arms, heads, limbs) in very broad brushes. From there you can switch to smaller brushes and sculpt large details, pronounced muscles, fingers and the like. Only then you can add intricate details like wrinkles or scars using finer brushes.

The number and complexity of the available objects are limited being that this is a free tool. If you are just curious about 3D sculpting; then this is the best tool to start. If you Having said that, try Sculptris if you want to step it up, or ZBrush or Mudbox.

Format: obj, ply, sql, STL
Cost: Free
OS: Browser

3d cad software

TinkerCAD

If you are just starting out; then TinkerCAD provides a very nice intuitive approach to common tools and concepts in 3D modeling software programs. Being browser-based it makes it very easy to access and get started right away.

In the application, it is easy to create a wide range of basic shapes. You can then stack the blocks one by one until you get the shape, and adjust freely to create an object. It works by placing blocks one by one until it shapes the part of the objects then adjust the design freely and the last is to combine the set of shape to create an object you want. With the CSG feature you can get a model up and running in minutes.

Key Features:

  • 3D design and modeling tool for beginners and experts alike
  • Part of the 123D family of free apps
  • 3D print with only a click

Format: 123dx, 3ds, c4d, mb, obj, svg, stl
Cost: Free
OS: Web Application

3d cad software

Name Level OS Availability Formats
123D Design Beginner Windows, Mac and iOS Free
123x, step, stl, x3d, vrml
3D Slash Beginner Windows, Mac, Linux, Raspberry Pi or Browser Free 3dslash, obj, stl
3D-Coat Commercial software
3ds Max Professional Windows
stl, 3ds, ai, abc, ase, asm, catproduct, catpart, dem, dwg, dxf, dwf, flt, iges, ipt, jt, nx, obj, prj, prt, rvt, sat, skp, sldprt, sldasm, stp, vrml, w3d xml
3DVIA Shape Commercial software
AC3D Commercial software
Anim8or Freeware
Animation:Master Commercial software
ArchiCAD Commercial software
AutoCAD Professional Windows and Mac dwg, dxf, pdf
Autodesk 123D Freeware
Autodesk 3ds Max Commercial software
Autodesk Inventor Commercial software
Autodesk Maya Commercial software
Autodesk Mudbox Commercial software
Autodesk Revit Commercial software
Autodesk Softimage Commercial software
AutoQ3D Commercial software
AutoQ3D Community
Blender Professional Windows, Mac and Linux Free
3ds, dae, fbx, dxf, obj, x, lwo, svg, ply, stl, vrml, vrml97, x3d
BricsCAD Commercial software
BRL-CAD
Bryce Commercial software
Carrara Commercial software
CATIA Industrial Windows
3dxml, catpart, igs, pdf, stp, stl, vrml
Cheetah3D Commercial software
Cinema 4D Commercial software
CityEngine Commercial software
Clara.io Intermediate Browser Free, Premium features from $100/year
3dm, 3ds, cd, dae, dgn, dwg, emf, fbx, gf, gdf, gts, igs, kmz, lwo, rws, obj, off, ply, pm, sat, scn, skp, slc, sldprt, stp, stl, x3dv, xaml, vda, vrml, x_t, x, xgl, zpr
DAZ Studio Freeware
DesignSpark Mechanical Freemium
Electric Image Animation System Commercial software
Exa Corporation Commercial software
Flux Freeware
Form-Z Commercial software
fragMOTION Commercial software
FreeCAD Intermediate Windows, Mac and Linux Free
step, iges, obj, stl, dxf, svg, dae, ifc, off, nastran, Fcstd
Fusion Industrial Windows and Mac $499.80 Educational licenses available
catpart, dwg, dxf, f3d, igs, obj, pdf, sat, sldprt, stp
Geomodeller3D Commercial software
HDR Light Studio (lighting software) Commercial software
Hexagon Commercial software
Houdini Commercial software
Inventor Industrial Windows and Mac $2,060 year
3dm, igs, ipt, nx, obj, prt, rvt, sldprt, stl, stp, x_b, xgl
IRONCAD Commercial software
K-3D GNU GPL2
LightWave 3D Trialware
MakeHuman Intermediate Windows, Mac, Linux Free
dae, fbx, obj, STL
Makers Empire 3D Freemium
MASSIVE Commercial software
Meshmixer Intermediate Windows, Mac and Linux Free
amf, mix, obj, off, stl
Metasequoia Commercial software
MikuMikuDance Freeware
Milkshape 3D Commercial software
Modo Commercial software
Moi3D Commercial software
Moment of Inspiration (MoI) Intermediate Windows and Mac $266
3ds, 3dm, dxf, fbx, igs, lwo, obj, skp, stl, stp and sat
Mudbox Professional Windows and Mac $85 fbx, mud, obj
Onshape Professional Windows, Mac, Linux, iOS, Android $2,400
sat, step, igs, iges, sldprt, stl, 3dm, dae, dfx, dwg, dwt, pdf, x_t, x_b, xxm_txt, ssm_bin
Open CASCADE GNU LGPL
OpenSCAD Intermediate Windows, Mac and Linux Free dxf, off, stl
Paint 3D in Windows 10 Pre-installed with Windows 10 Creators Update
Photoshop CC Beginner Windows and Mac $142
3ds, dae, kmz, obj, psd, stl, u3d
Poser Advanced Windows, Mac Standard $129.99, Pro $349.99 cr2, obj, pz2
Pro/ENGINEER Commercial software
Quake Army Knife GNU GPL
RaySupreme Commercial software
Realsoft 3D Commercial software
Remo 3D Commercial software
RFEM Commercial software
Rhino3D Professional Windows and Mac 495€ Educational, 1695€ Commercial
3dm, 3ds, cd, dae, dgn, dwg, emf, fbx, gf, gdf, gts, igs, kmz, lwo, rws, obj, off, ply, pm, sat, scn, skp, slc, sldprt, stp, stl, x3dv, xaml, vda, vrml, x_t, x, xgl, zpr
Rhinoceros 3D Commercial software
ROBLOX Studio Freeware
SculptGL Beginner Browser Free obj, ply, sgl, stl
Sculptris Intermediate Windows and Mac Free obj, goz
Seamless3d MIT
Shade 3D Commercial software
Silo Commercial software
SketchUp Intermediate Windows and Mac Free, 657€ Pro
dwg, dxf, 3ds, dae, dem, def, ifc, kmz, stl
Solid Edge Commercial software
solidThinking Commercial software
Solidworks Industrial Windows 9.950 €, Educational licenses available
3dxml, 3dm, 3ds, 3mf, amf, dwg, dxf, idf, ifc, obj, pdf, sldprt, stp, stl, vrml
SpaceClaim Commercial software
Strata 3D Commercial software
Sweet Home 3D Freeware
Swift 3D Commercial software
Tekla Structures Commercial software
TinkerCAD Beginner Browser Free
123dx, 3ds, c4d, mb, obj, svg, stl
TrueSpace Freeware
Unigraphics Commercial software
Vectorworks Commercial software
Wings 3D BSD
Wolfram Mathematica Commercial software
ZBrush Professional Windows and Mac 400€ Educational License, 720€ Single User License
dxf, goz, ma, obj, stl, vrml, x3d
Zmodeler Freeware
ZWCAD Commercial software
